Product Description:BMW X1 E84(2009-2013)

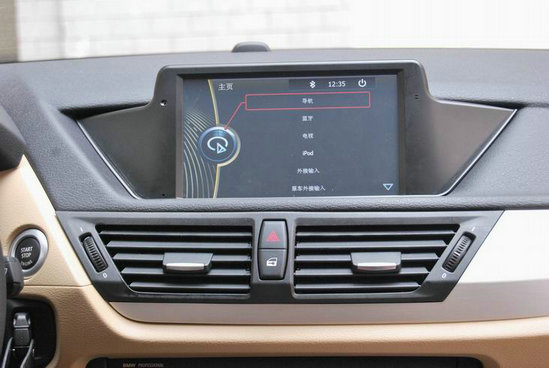

Replace the BMW X1s storage cabinet with an 8 inch screen head unit and volume button (no need to dismantle the original cars CD, no DVD function)

(1),Product features:
1,We adopt the latest ARM11 to develop high performance multimedia car dvd with the functions of navigation, audio&video, entertainment and etc.
2,It has more video decoding capabilities, maximum support 1024*768.
3,RAM 256,Support hard disk 500G and HD map.
4,Support Sanyo 6 disc DVD changer (optional)
5,GPS navigation function:SiRF Prima, CPU: ARM11,800MHZ ,WinCE6.0
6,support original car reverse track(cant support if original car dont have)
7,Support MP5 Multimedia HD video play

(2),Parameters:
1,DVD player adopt the MTK1389L decoding chip.
2,Support the Bluetooth function, Phone book, A2DP
3,Built-in TDA7703 FM/AM radio module.
4,Bluetooth phone and A2DP function.
5,Built-in 4 X 40W amplifier output.(TDA7388)
6,Two SD slot(maximum storage128GB): GPS navigation map card, multimedia card.
7,Support USB 2.0 high speed OTG, USB1.1 HOST; support the USB SATA hard disk.
8,Support two AV IN (one is front AUX audio and video input, one is rear AUX audio and video input).
9,Two video out output.
10,4.1CH 2Vrms audio output.
11,Support IPOD input (audio).
12,Camera input.
13,Digital television function: CMMB; DVB-T; ATSC; ISDB (optional)
14,RDS function (optional)
15,Support photo browser
16,E-book function
17,Support reversing auxiliary function of original car
18,Support External TV function
19,Support all standard analogy TV

(3),Key parameters:
1,Operating voltage range: DC10.5V~ 16V; Maximum operating current: 10A
2,Operating temperature : -20?~60?
Storage temperature: -30?~70?
3,Standby current: ?50mA
After power off in 10 minutes: <1mA
4,Shutdown current: <1mA

(4)TWO-Way CAN BUS Function details:

1 Backlight adjustment
2 Car/Vehicle speed
3 Driving Computer Information
4 System configuration information
5 Time and date information
6 Steering wheel buttons
7 CDC Playing information
8 CDC Disc Status information
9 Return control information
10 Door information
