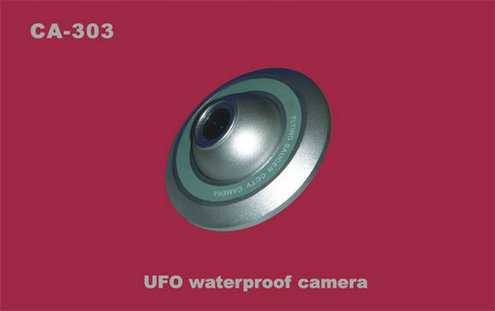

UFO Camera
|
Model:CA-303
Description:
| Item |
CA-303 |
| Ip rating |
Ip66 |
| Images Sensors |
1/3" COLOR CCD |
| TV System |
PAL/NTSC |
| Effective Pixels |
628X582/628X512 |
| Sensing Area(mm) |
4.9X3.7 |
| Resolution(TV Lines) |
420 |
| Min.Lllumination(Lua/F1.2) |
0 |
| Horizontal Sync.Frequency(KHZ) |
1/50 or 1/60～1/10,000 |
| Vertical Sync.Frequency(HZ) |
15.625/15.734 |
| Video Output: |
1Vp-p,75 Ohm |
| Gamma Consumption: |
0.45 |
| AGC: |
Auto |
| BLC : |
Auto |
| S/N ratio : |
Better than 48dB |
| Lens: |
F=3.6mm/F=2.0 |
| Lens Angle(Deg.) : |
95° |
| Current Consumption(mA) : |
270 |
| Power Supply(DCV) |
12 |
| Operating Temperature(Deg.C): |
-20～+70(RH95% Max.) |
| Storage Temperature(Deg.C) : |
-30～+80(RH95% Max.) |
| Dimension: |
62X43X48mm |
|
|
