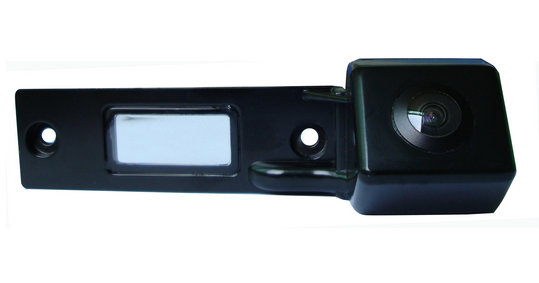

Model:JB-6824

Suit for VW PASSAT
Waterproof camera
Ip rating:Ip68
Images Sensors:OV7950/MT136/FCCD
TV system:PAL/NTSC（can choose）
Image area:5.961mm×4.276mm
Effective pixels:P:628(H)*586(V)  N:656(H)*462(V)
Resolution(TV Lines):420
Min.illumination:0.2Lux
Horizontal Sync.Frequency(KHZ) 1/50 or 1/60～1/10,000
Vertical Sync.Frequency(HZ) 15.625/15.734
Video Output: 1Vp-p,75 Ohm
BLC:Auto
S/N ratio:>48dB
Lens: F=1.8mm/F=2.0
Lens Angle(Deg.):170°
Current Consumption(mA):Max.60
Power Supply:DC 8-18V
Operating Temperature(Deg.C): -20～+85(RH95%Max.)
Storage Temperature(Deg.C): -30～+100(RH95%Max.)

can with distance reference line
Packing Info.:
Unit size:103（L)×38(H)×29.5(W)mm
Unit N.W/G.W.:92g/222g
Unit Packing:color box
Carton size:43.2×28.3×40.7cm  50pcs/CTN
N.W/G.W:11.1kg/11.91kg
