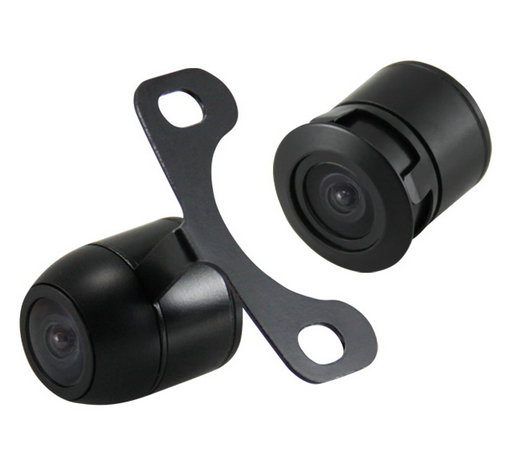

Model:JB-C682

170 degrees super wide angle rearview camera

Image feature:PC1030
TV System:NTSC/PAL
Image area:5.961mm×4.276mm
Effective pixels:P:628(H)*586(V)  N:656(H)*462(V)
Horizontal Resolution(TV lines):420 TV lines
View angel:1.8mm 170°
water-proof rating:IP67-IP68
minimum Illumination:0.2 Lux
Electronic Shutter Time:1/60-1/100,000sec.
Scanning System:2:1 Interlace
Sync System:Internal
S/N ratio:>48dB
Video Output:1.0Vp-p，75ohm
Power Source:DC12V±10%

BLC :automatism
AGC:automatism
White Balance:automatism

Operation Temperature:-20℃～＋75℃（RH95％Max.）
Storage Temperature:-40℃～＋85℃（RH95％Max.）


can with distance reference line
