Model:JB-C688

Side car camera

Ip rating: Ip67
Images Sensors：Sony CCD
TV System： PAL/NTSC
Effective Pixels： 500X582/510X492
Sensing Area(mm)： 4.9X3.7
Resolution(TV Lines)： 420
Min.illumination：0LUX
Video Output: 1Vp-p,75 Ohm
BLC : Auto
S/N ratio : Better than 48dB
Lens: F=2.8mm
Lens Angle(Deg.) : 120
IR LED:9 PCS
Current Consumption(mA) :300mA
Power Supply(DC): 12V
Operating Temperature(Deg.C): -20～+70(RH95%Max.)
Storage Temperature(Deg.C) : -40～+80(RH95%Max.)

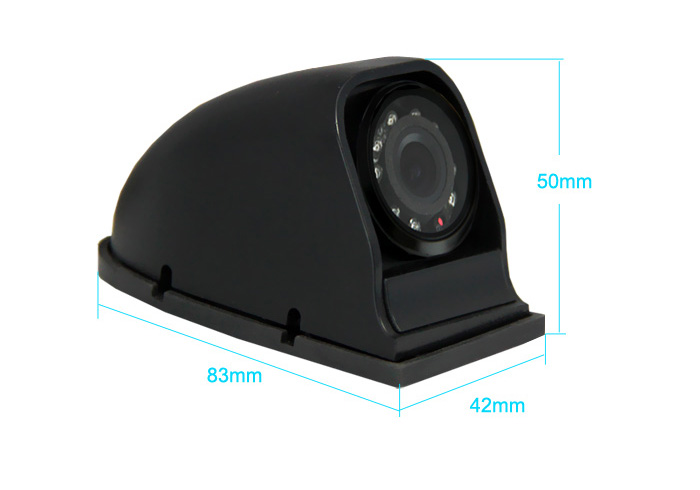

Dimension: 83*42*50mm
