Model: JB-C672

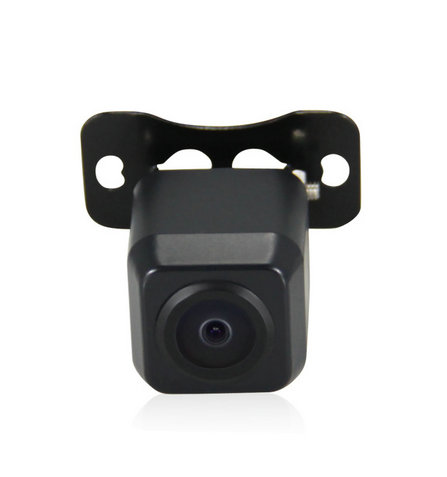

170°super wide angle waterproof car rearview camera

Image feature:PC1030/MT136
TV System:NTSC/PAL
Image area:5.961mm×4.276mm
Effective pixels:P:628(H)*586(V)  N:656(H)*462(V)
Horizontal Resolution(TV lines):420 TV lines

View angel:1.8mm 170°
water-proof rating:IP67-IP68
minimum Illumination:0.2 Lux
Electronic Shutter Time:1/50(1/60)-1/100,000sec.
Scanning System:2:1 Interlace
Sync System:Internal
S/N ratio:>48dB
Video Output:1.0Vp-p，75ohm
Power Source:DC12V±10%

BLC :automatism
AGC:automatism
White Balance:automatism

Operation Temperature:-20℃～＋75℃（RH95％Max.）
Storage Temperature:-40℃～＋85℃（RH95％Max.）

can with distance reference line

Packing Info.:

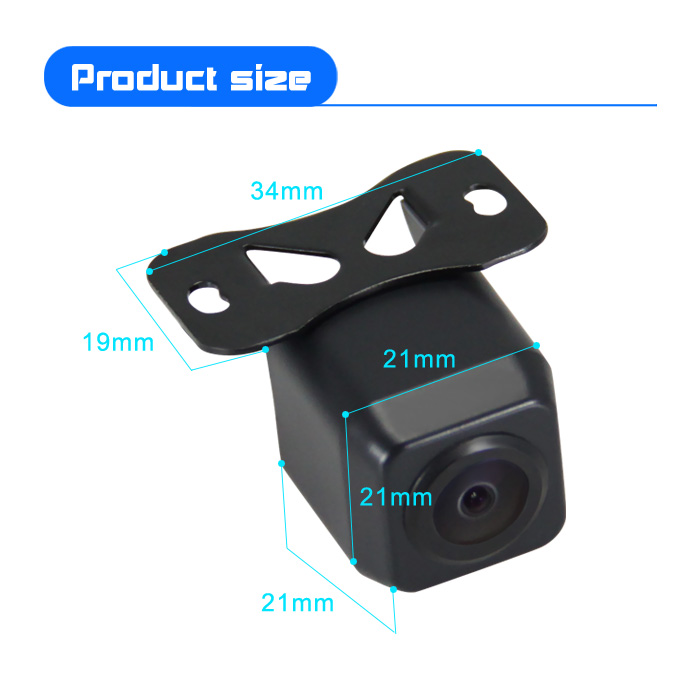

Unit size:21*21*21mm
Unit N.W./G.W.:34g/174g
Unit Packing:color box
Carton size:43.2*28.3*40.7cm  50pcs/CTN
N.W/G.W:8.7kg/9.4kg
